Parwan Protein

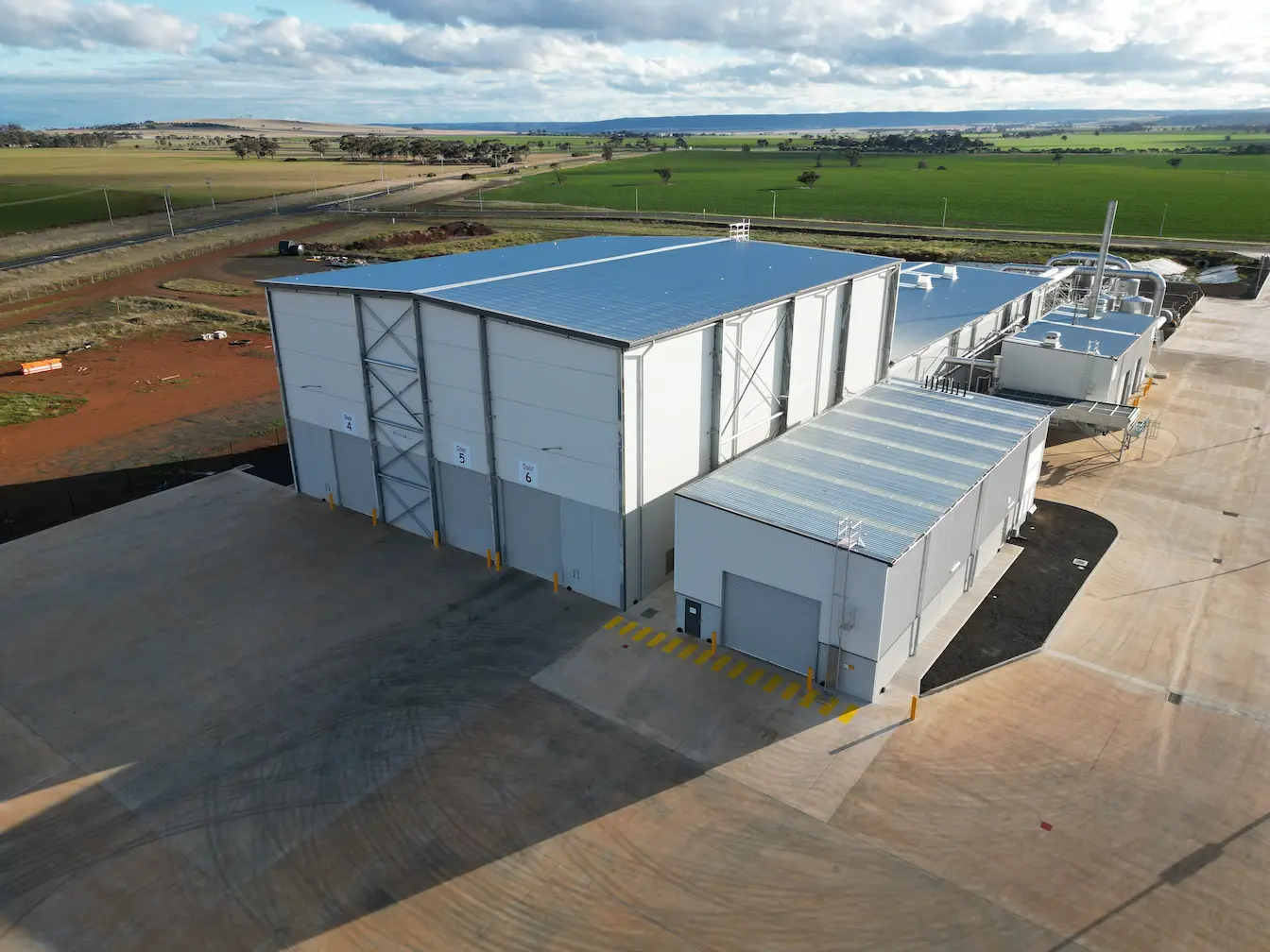

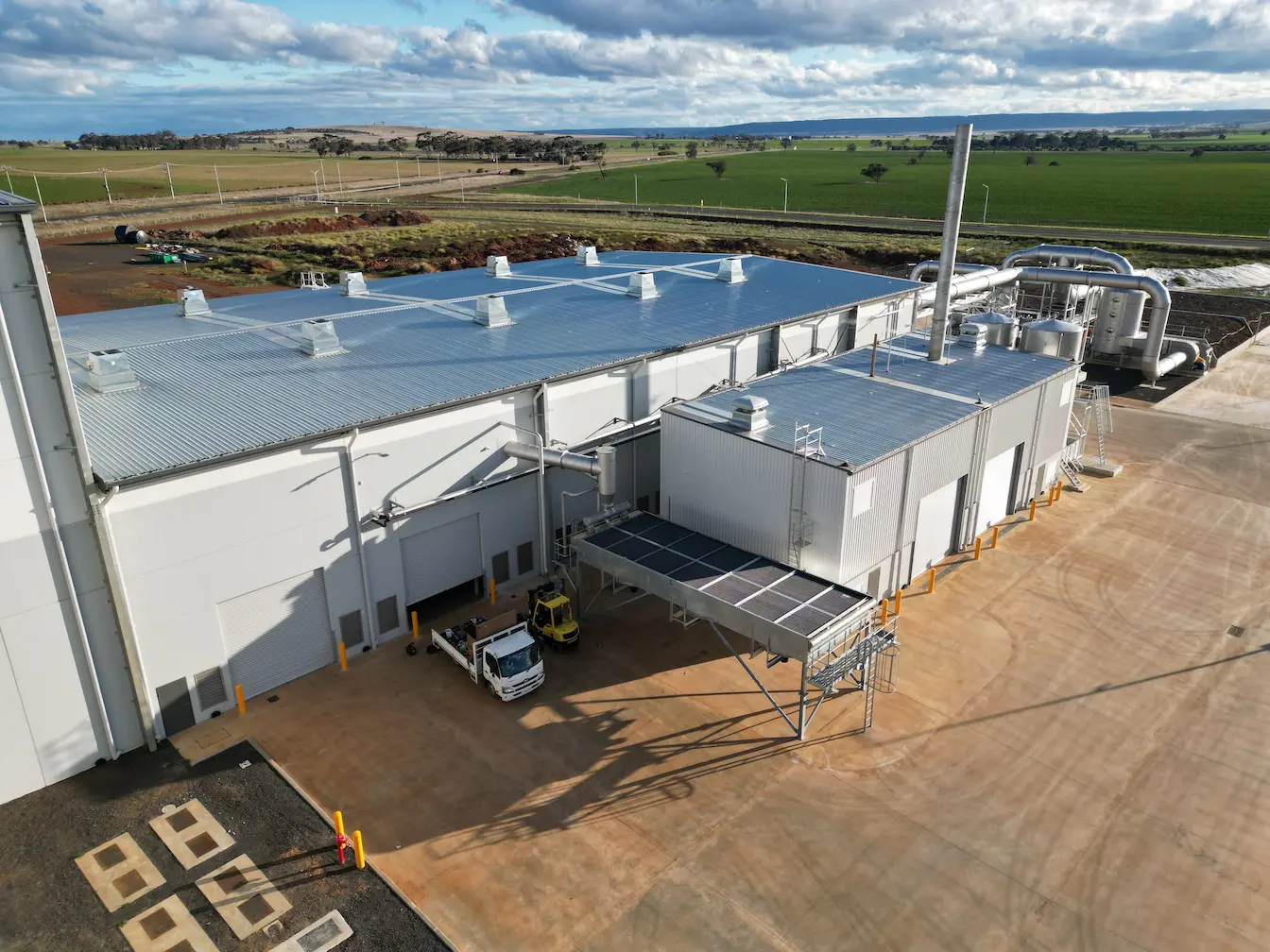

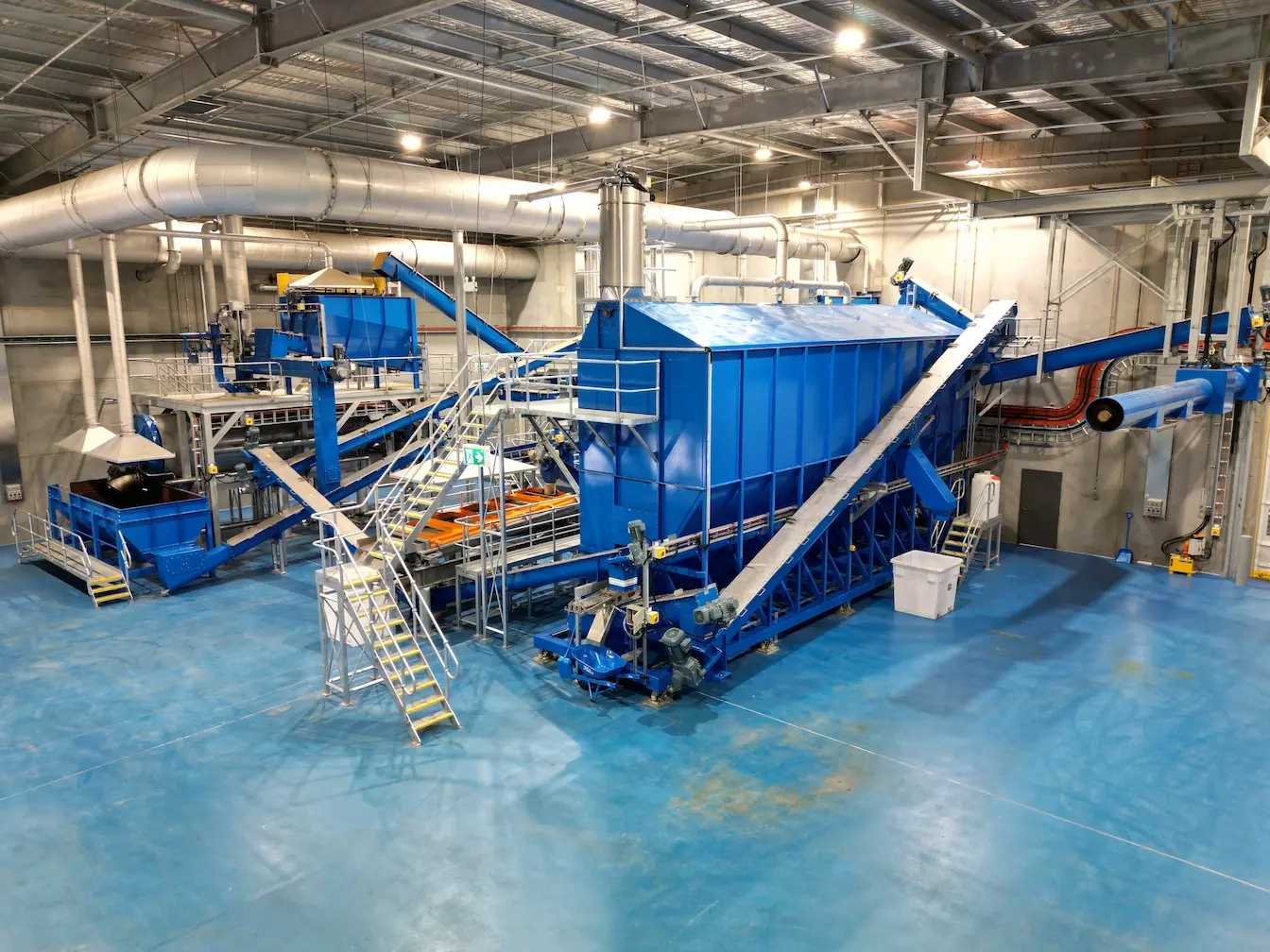

Housed on a greenfield site, in a purpose built building, Keith designed, manufactured and installed a Complete Continuous High Temperature Protein Recovery Facility, capable of processing up to 12,800kg/hr of mixed species material and coagulated blood. The plant has a high level of focus on maintenance access and operator movement and incorporates the latest design upgrades, controls and automation, minimising operator input and manual handling.

Being a service renderer, with no way of separating the wool product, a Batch Steriliser is located at the end of the process to pressurise and break down the wool. With this process, they’re able to recover what is often lost yield, increase protein levels in the meal, and also provide a facility for all product to be pressure, temperature, time cooked, opening access markets to the EU.

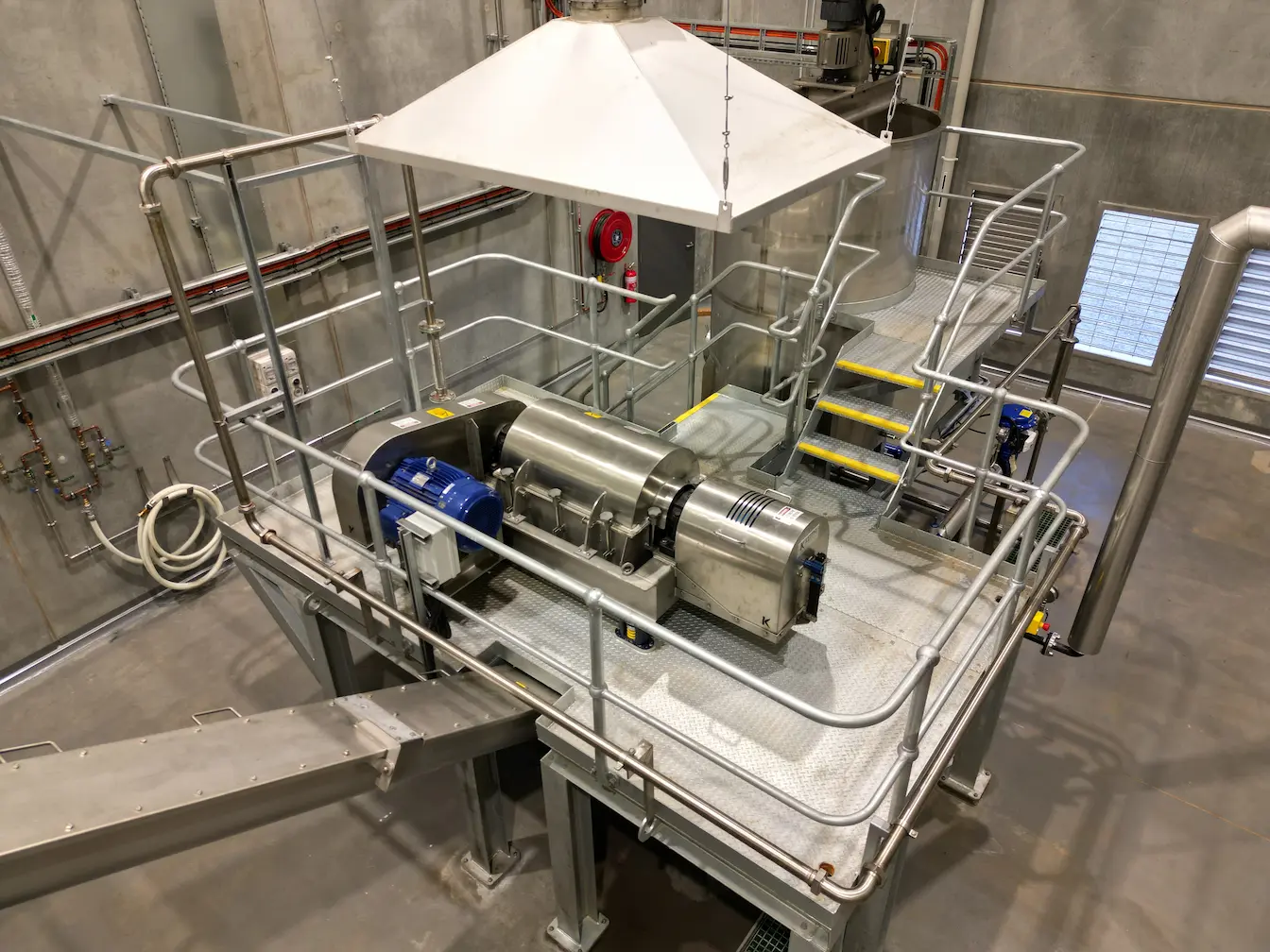

Raw blood processed at the facility is dewatered through a Coagulator and Decanter. The product is then meter control fed back in with the Raw Material increasing protein levels and the value of the end product, without affecting quality.

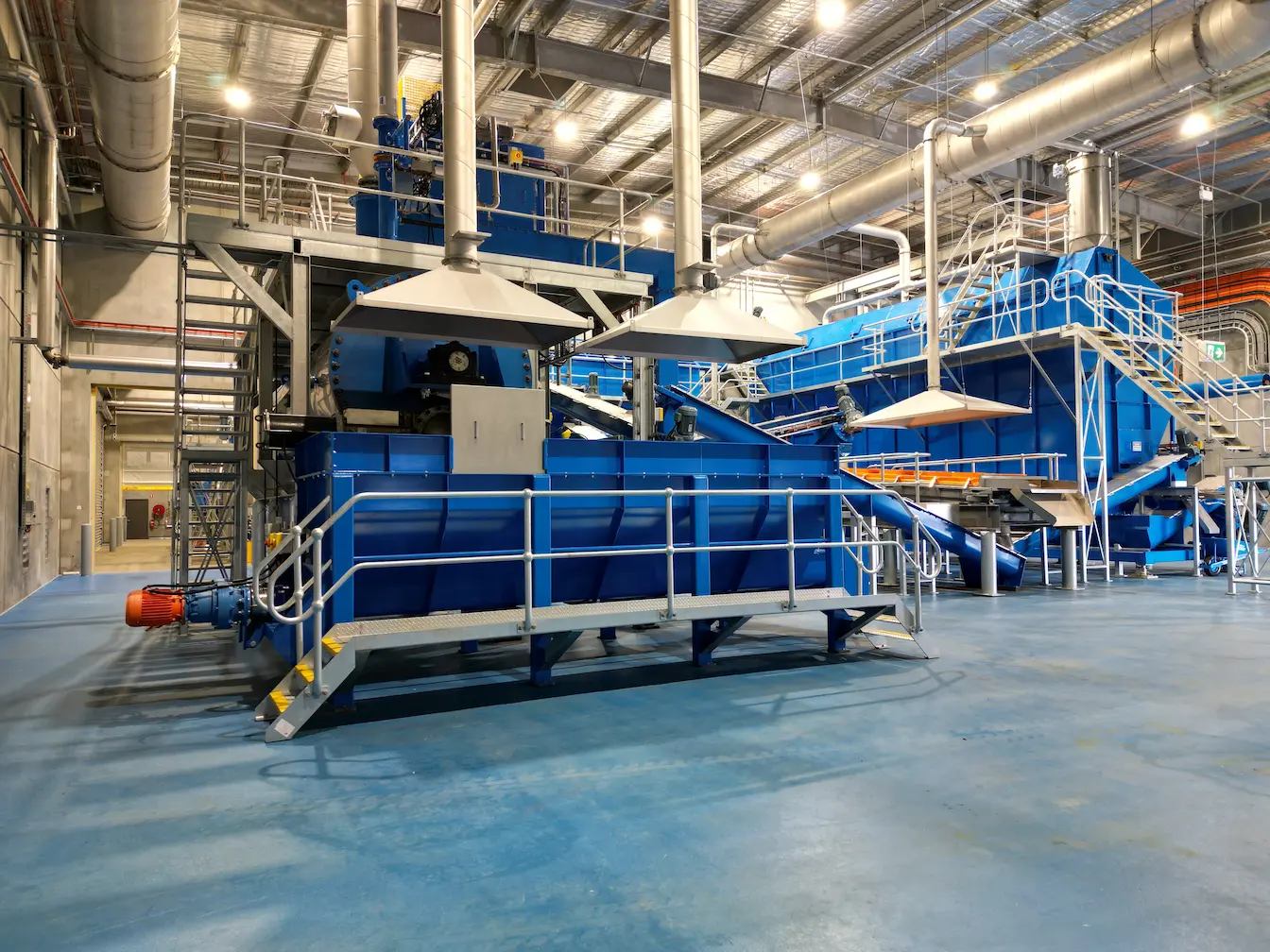

• 150m³ Raw Material Bin capacity

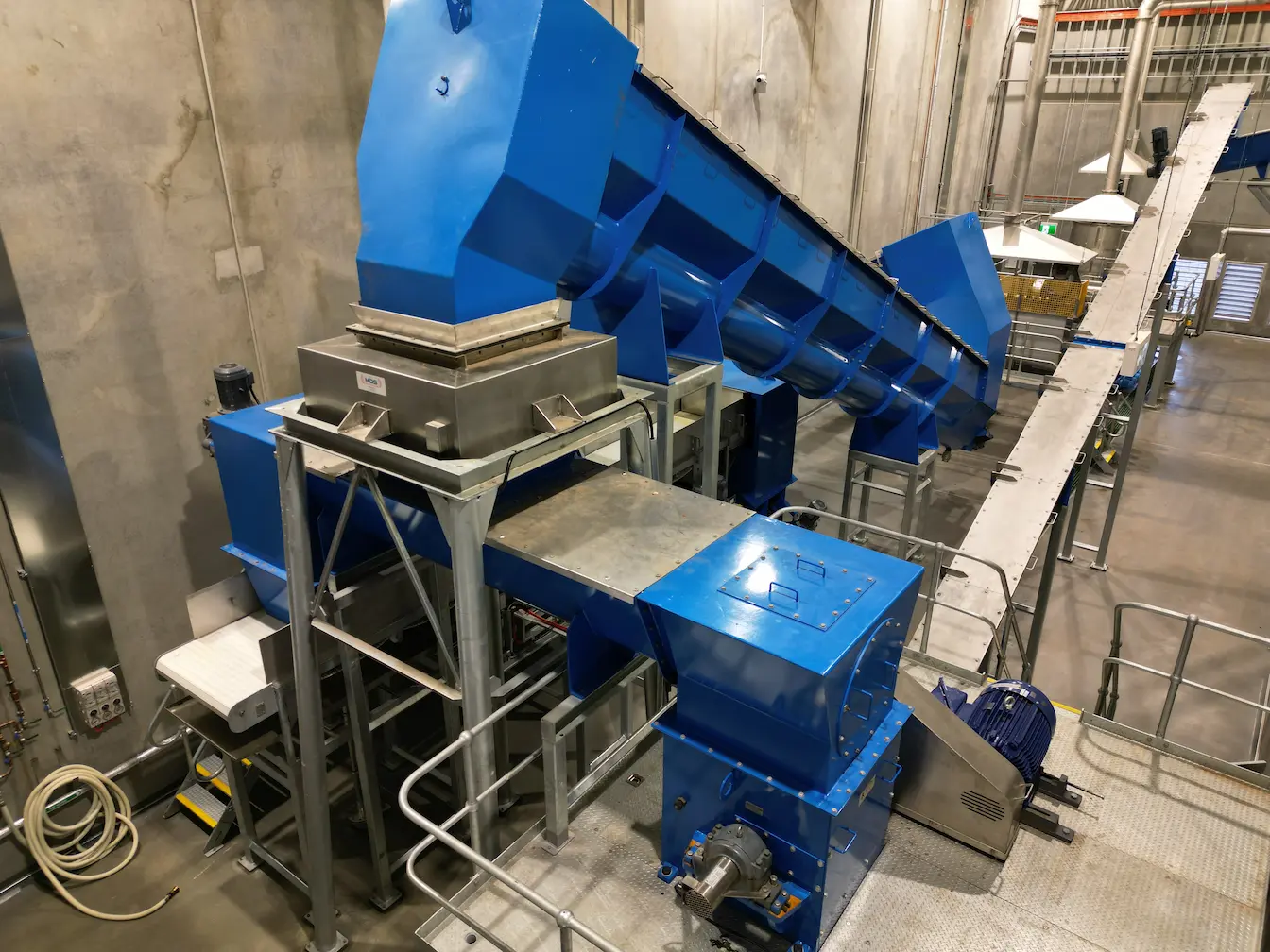

• Keith Double Anvil Pre-Hog
• Metal detection and sorting belt

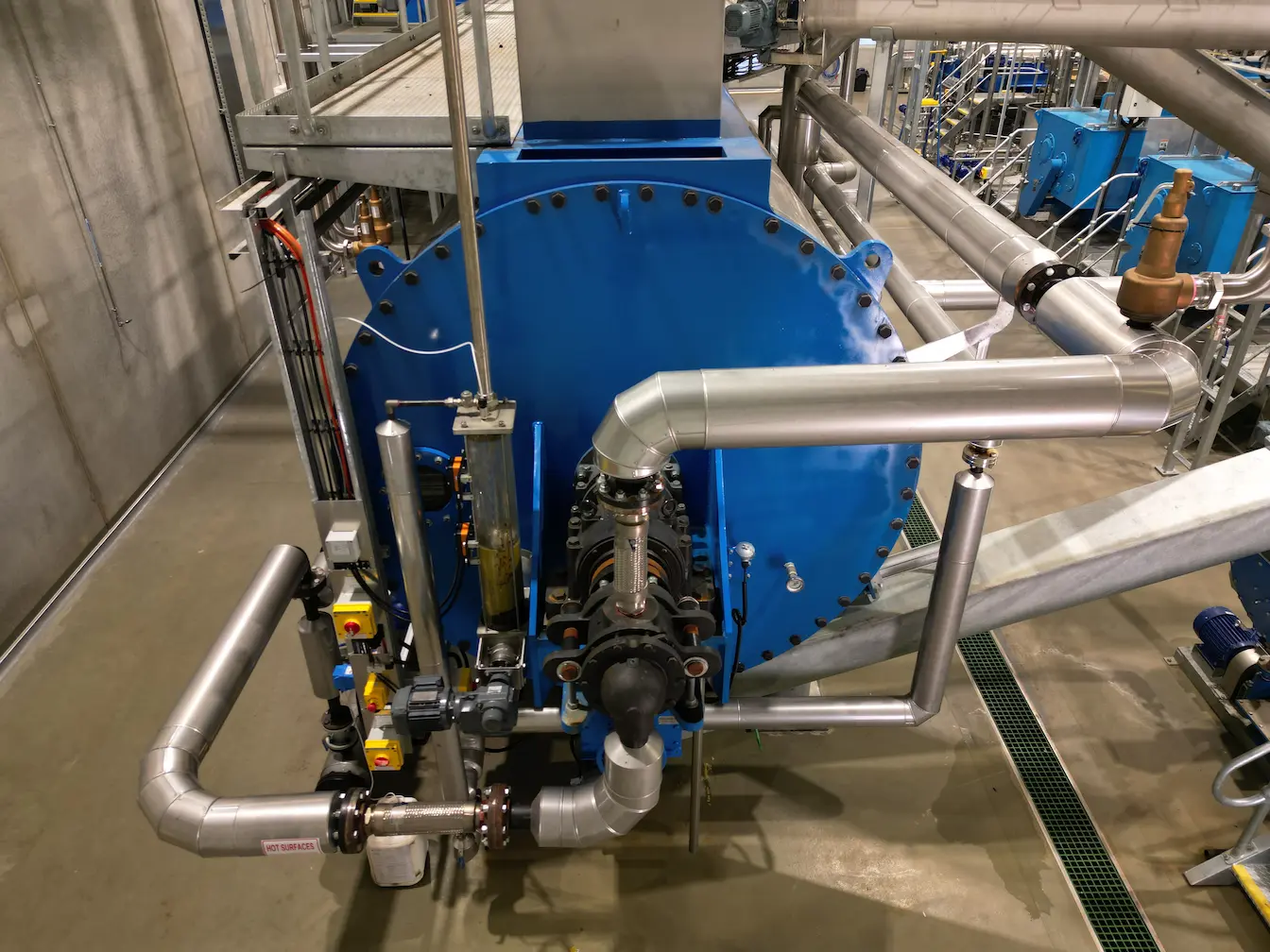

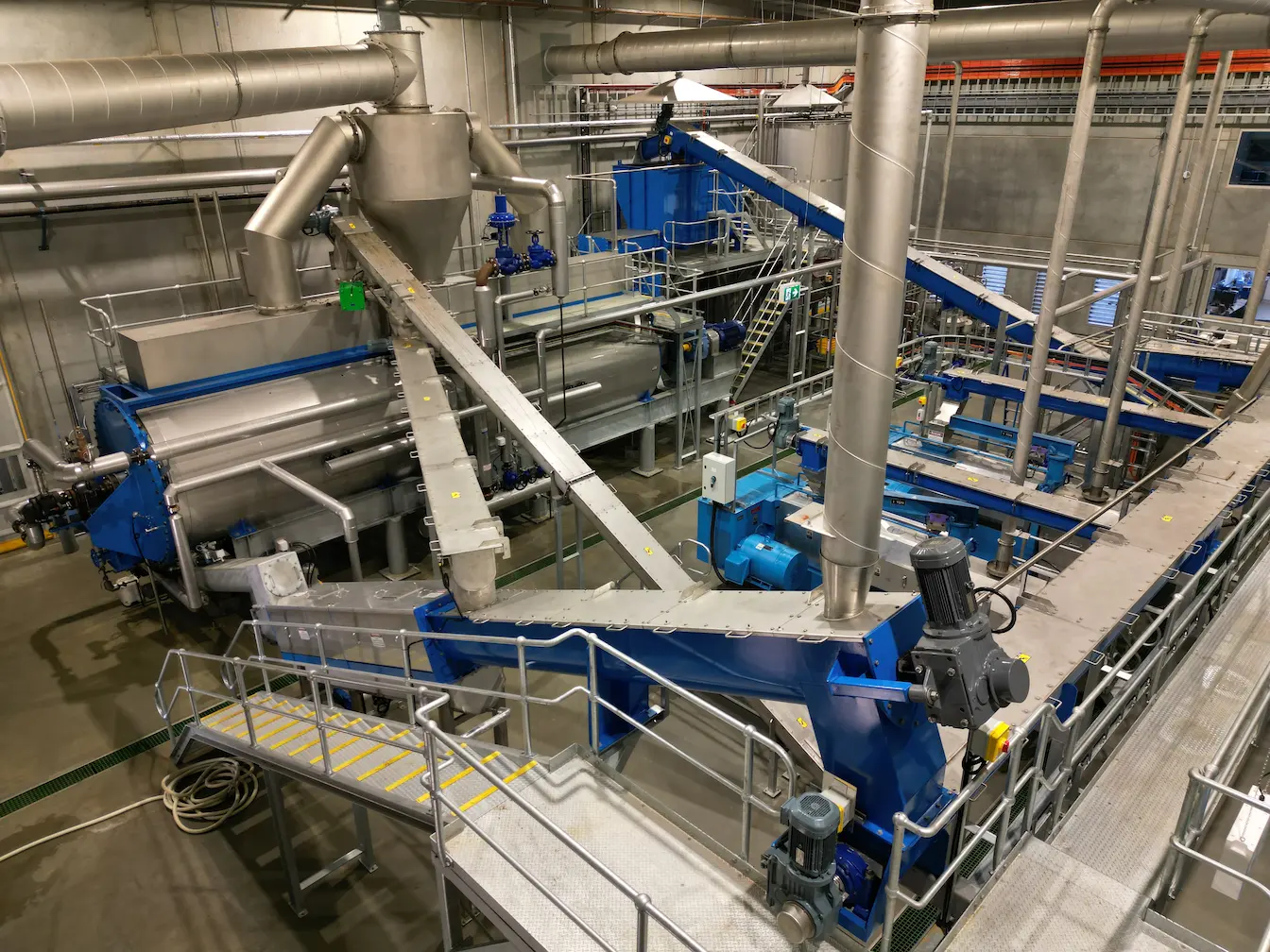

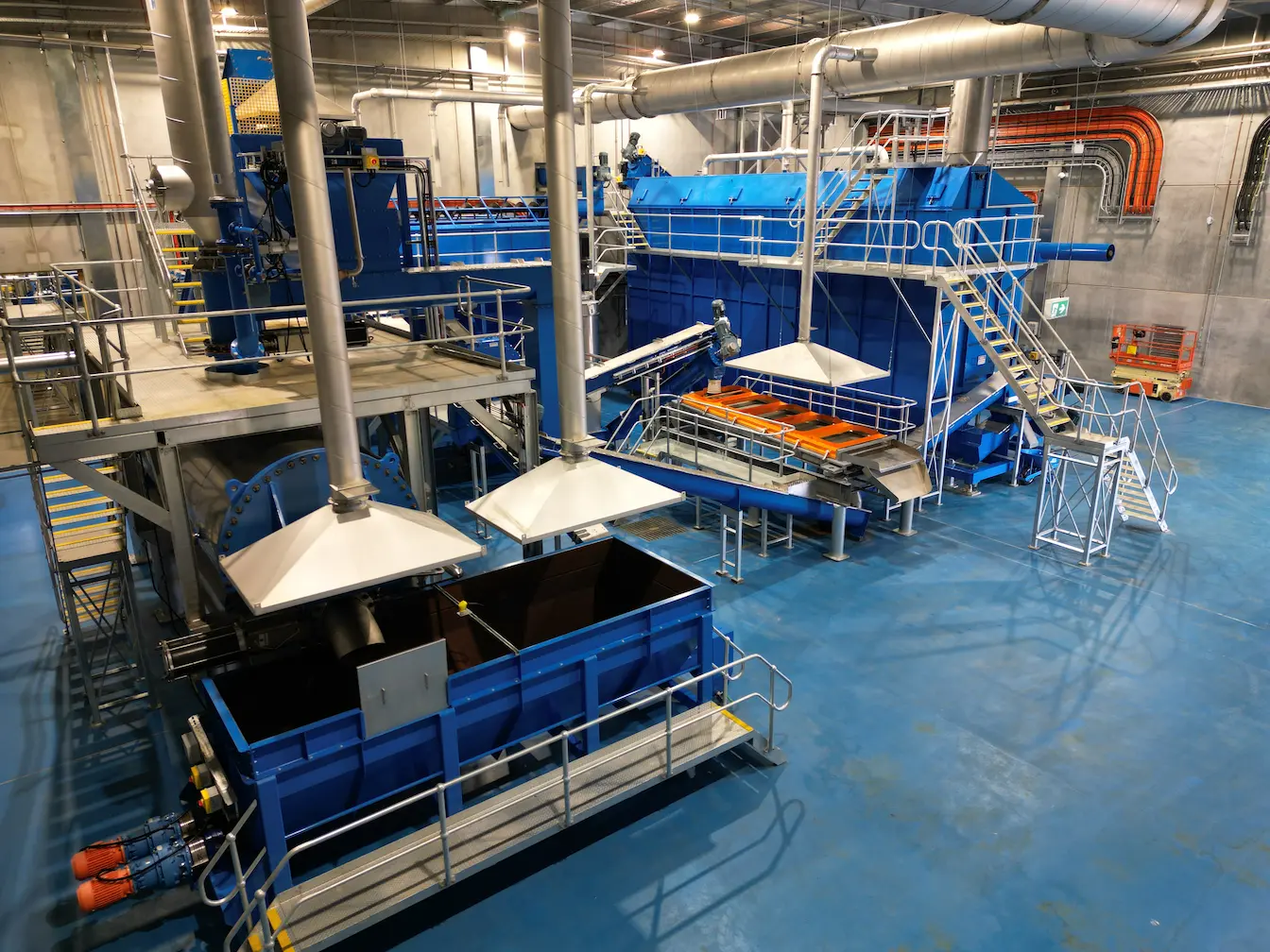

• A new generation bottom discharge Keith 1800 Series Continuous Cooker
• Automated Cooker steam control

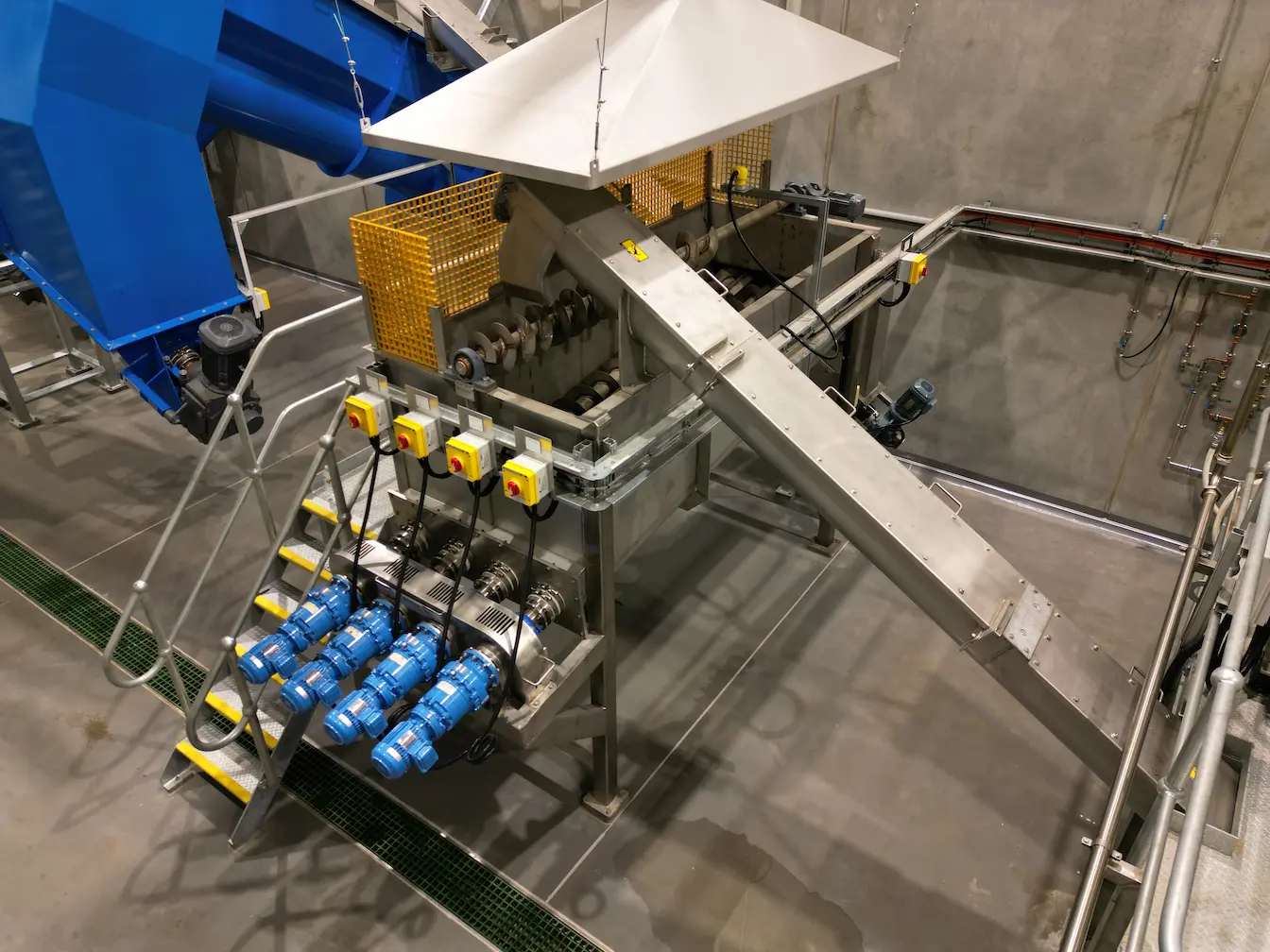

• Bottom Discharge Control Screw with Incline Crax Drainer

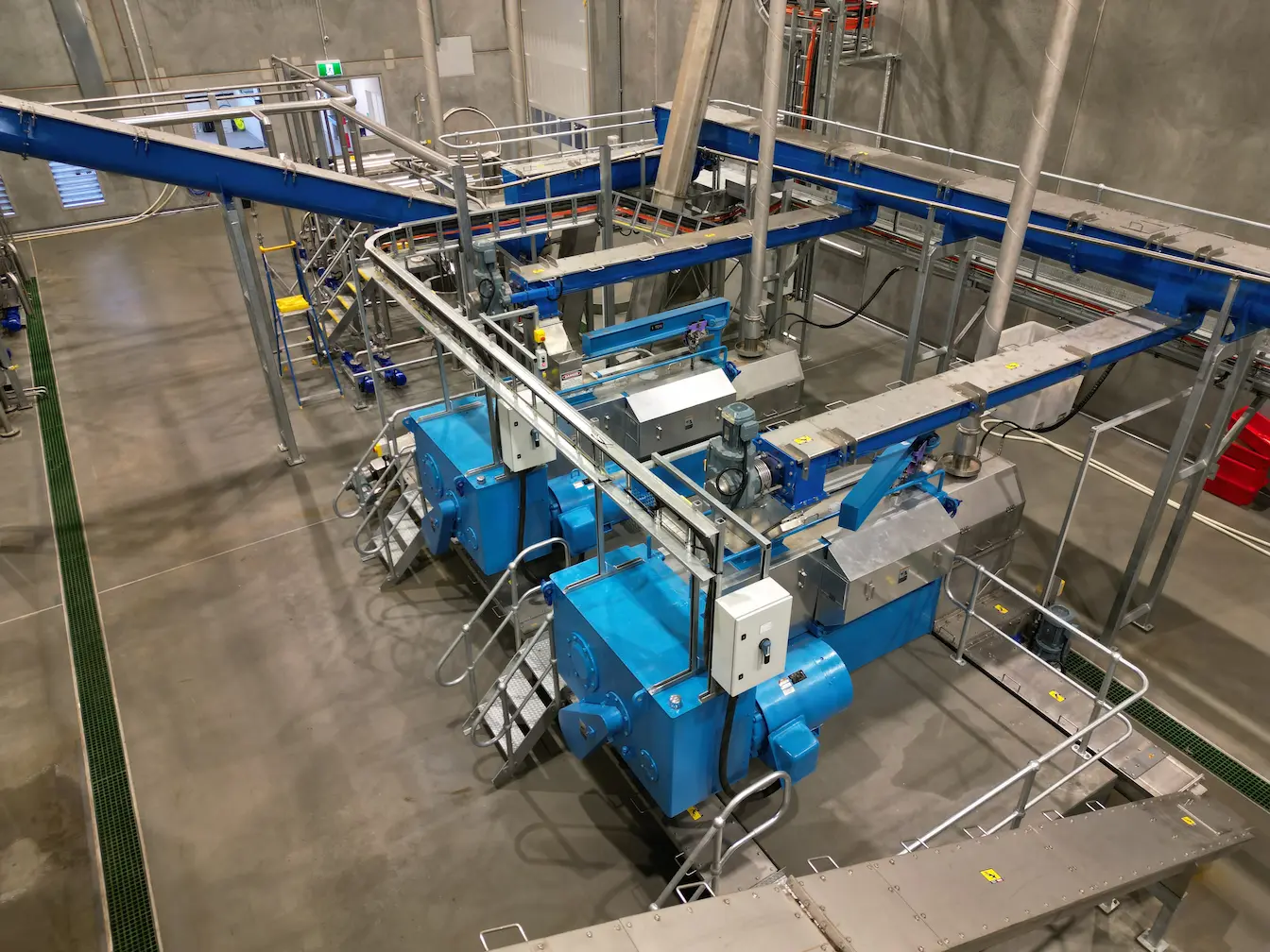

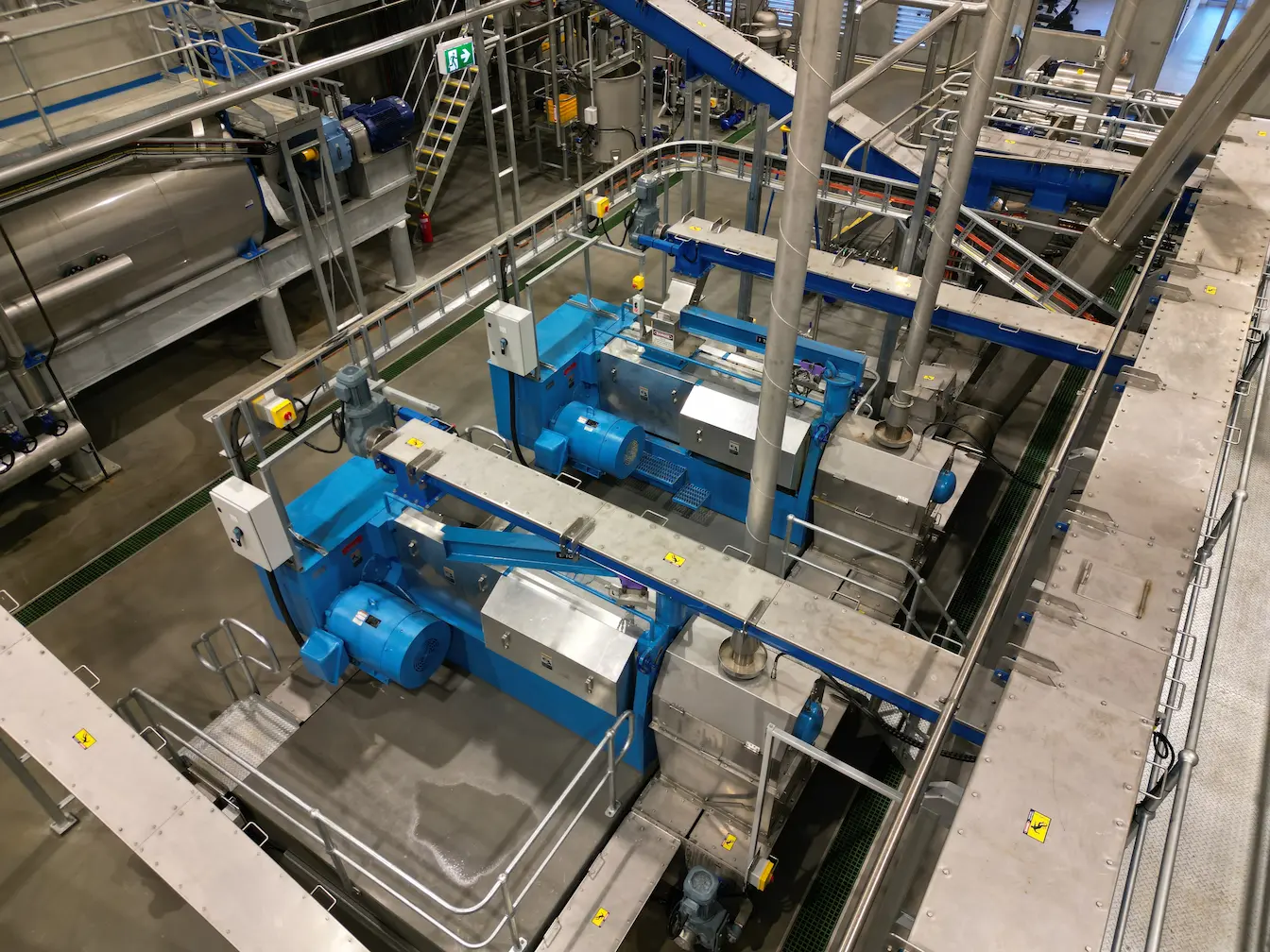

• Two hollow choke Dupps 12-10 Presses

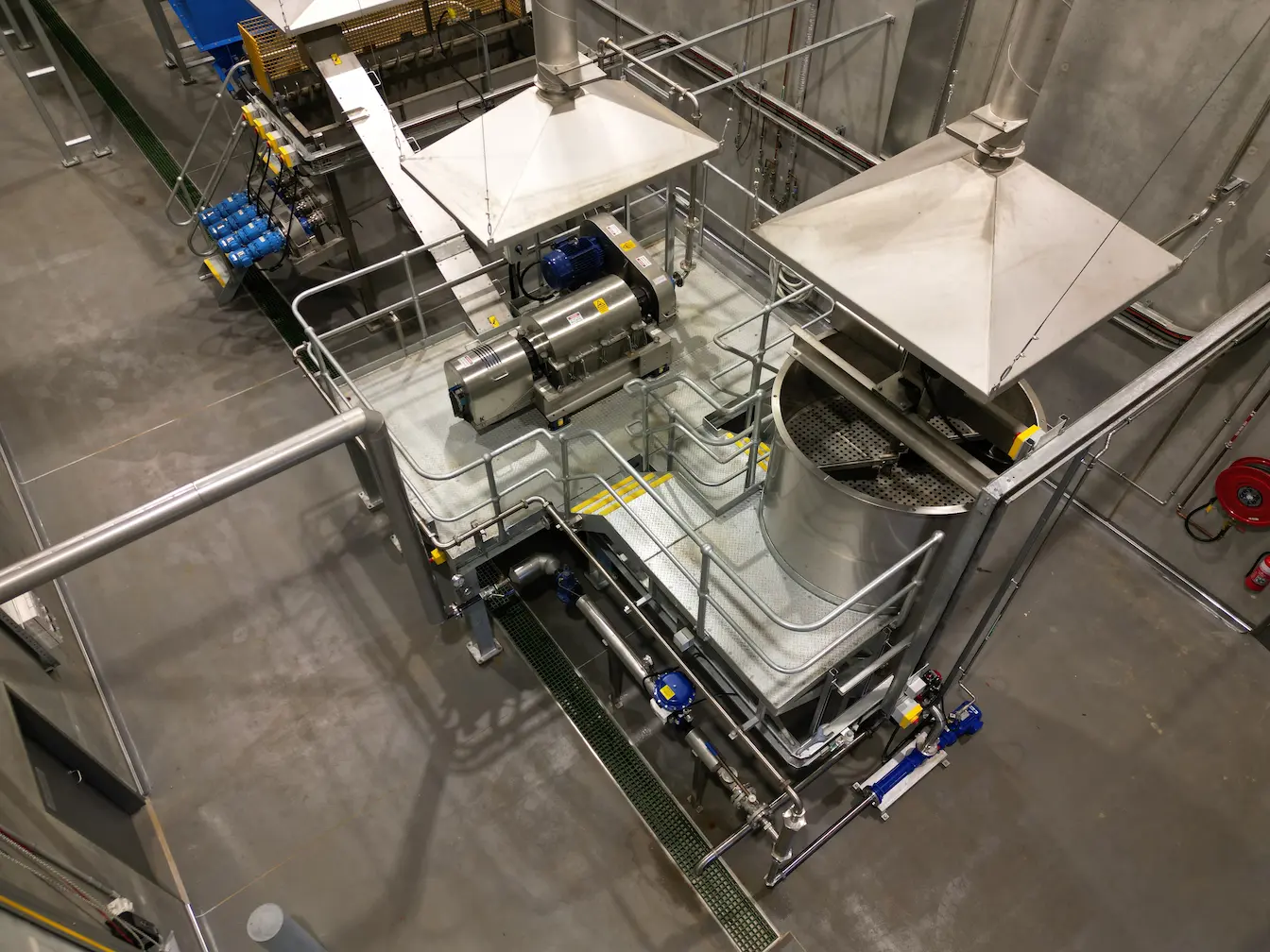

• Sweeco Tallow Vibrating Screen
• Keith 18x28 Blood Centrifuge

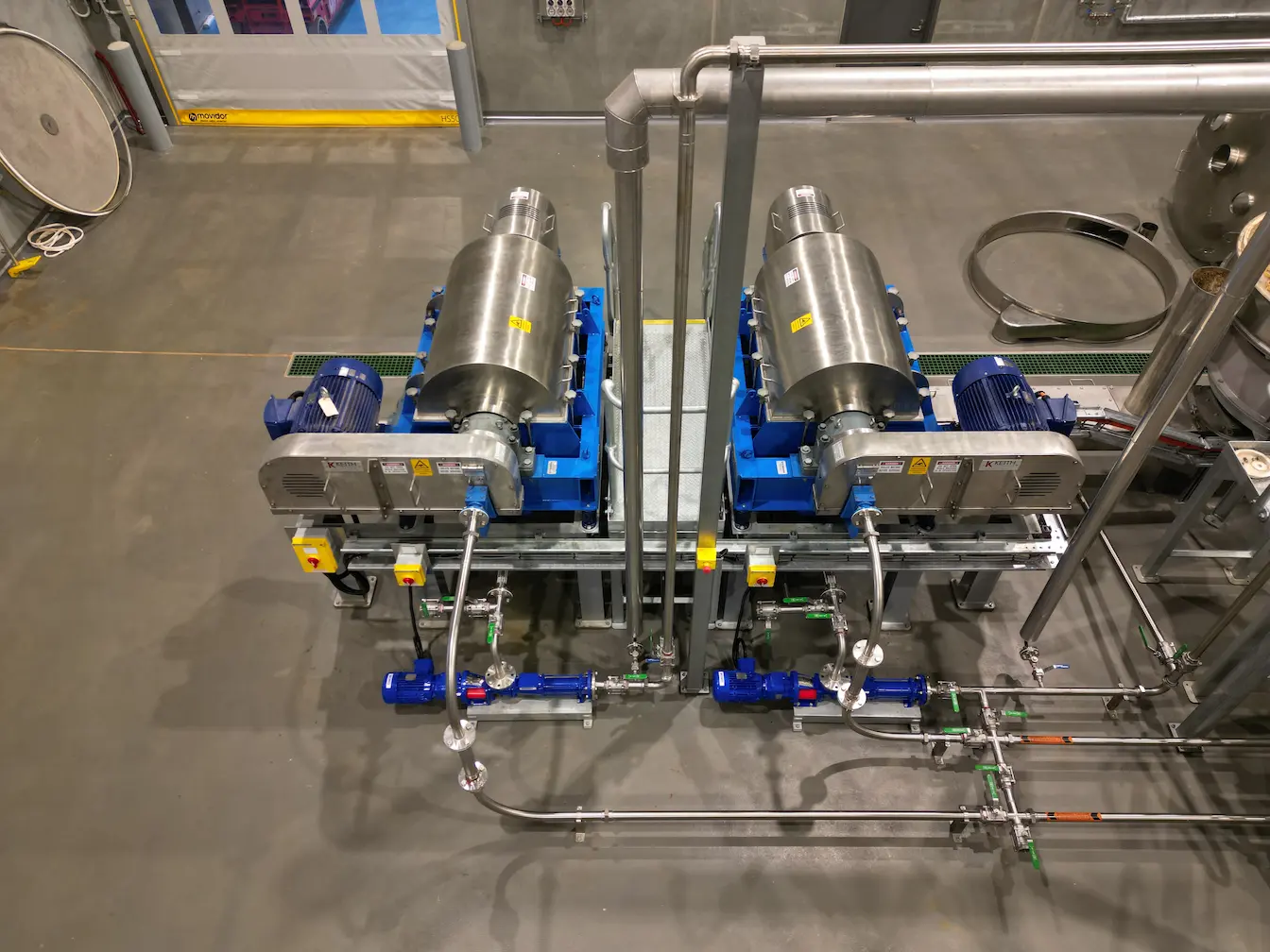

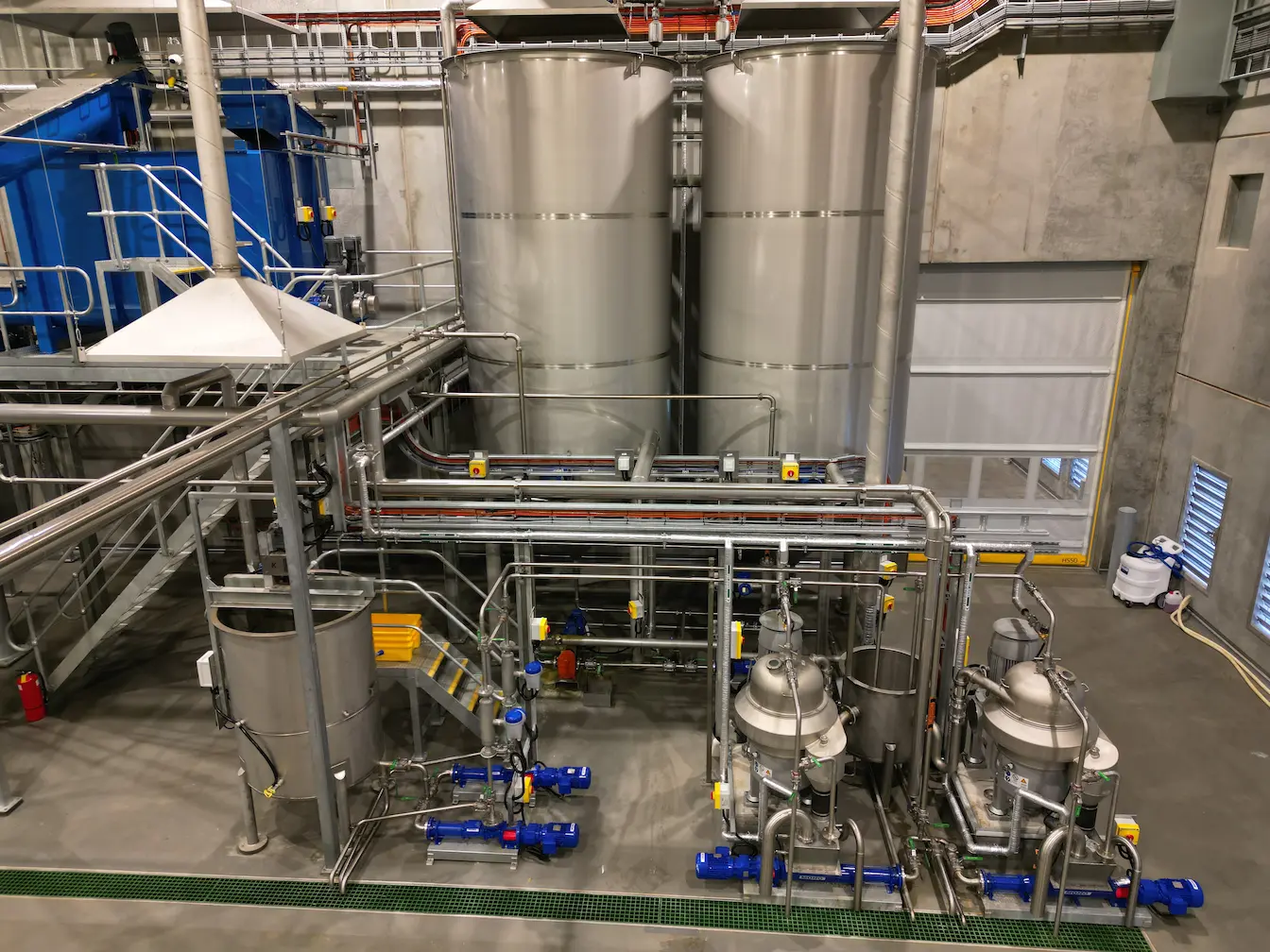

• Twin Keith 24 x 38 Tallow Centrifuge
• GEA Polisher
• Batch Steriliser at the end of the process
• Keith Super Hammer Mill
• Rotex Meat Meal Grading Screen
• Magna Ram Magnet
• 90 tonne capacity Meat Meal Blending Bin set up on load cells.

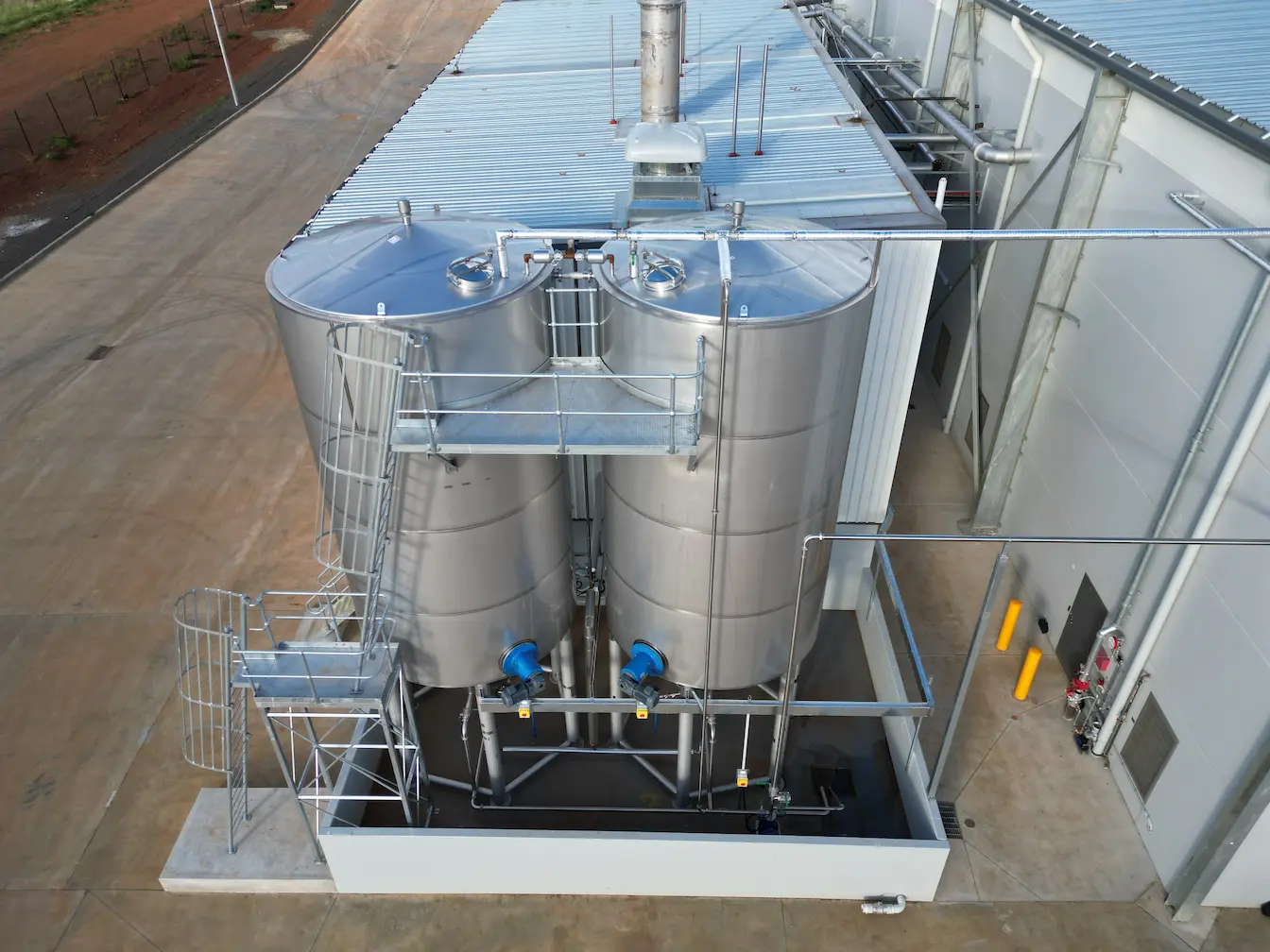

• Twin 60t Tallow Bulk Loadout Tanks
• Automated open top and container truck loading system which can also be operated remotely

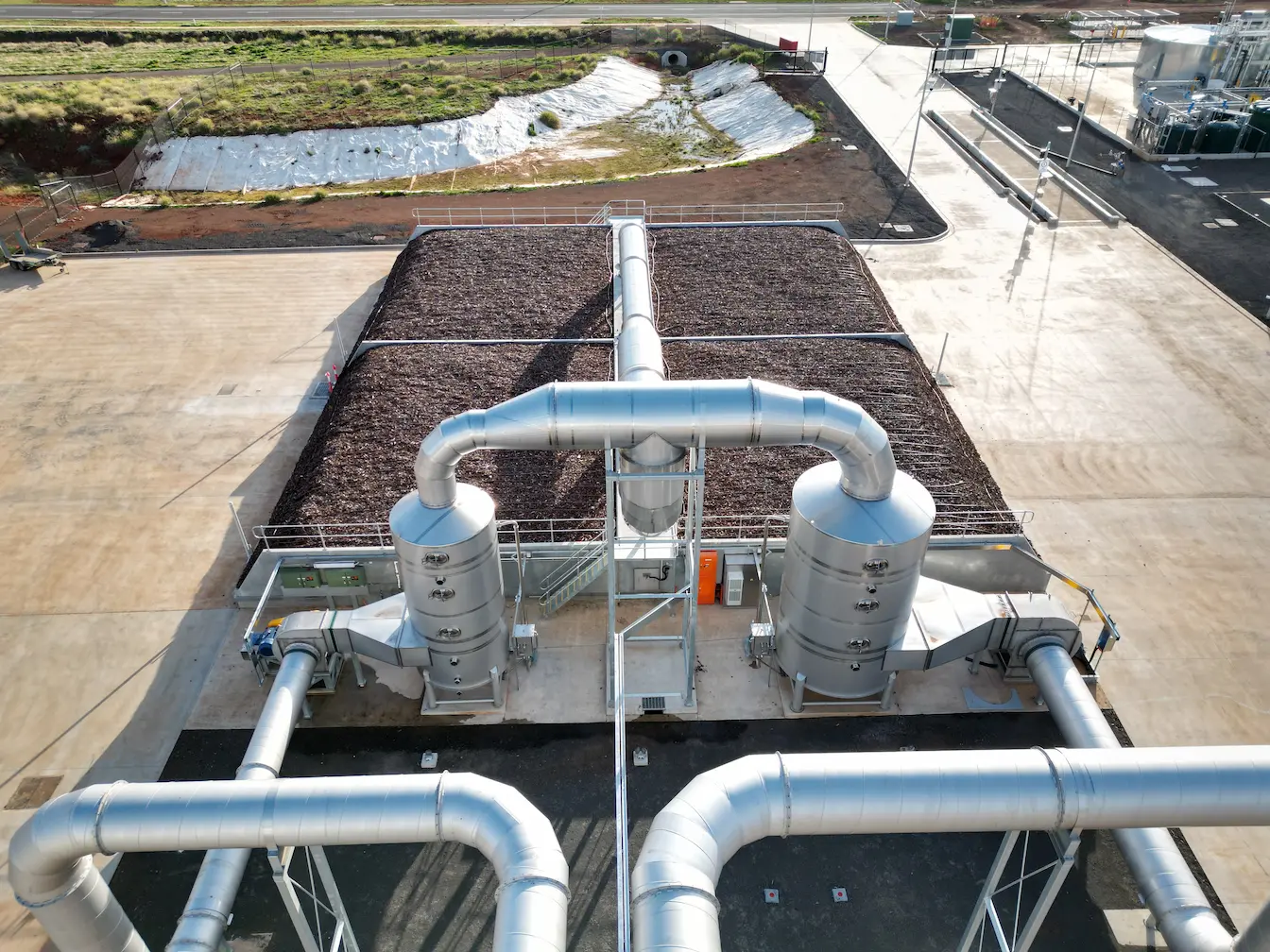

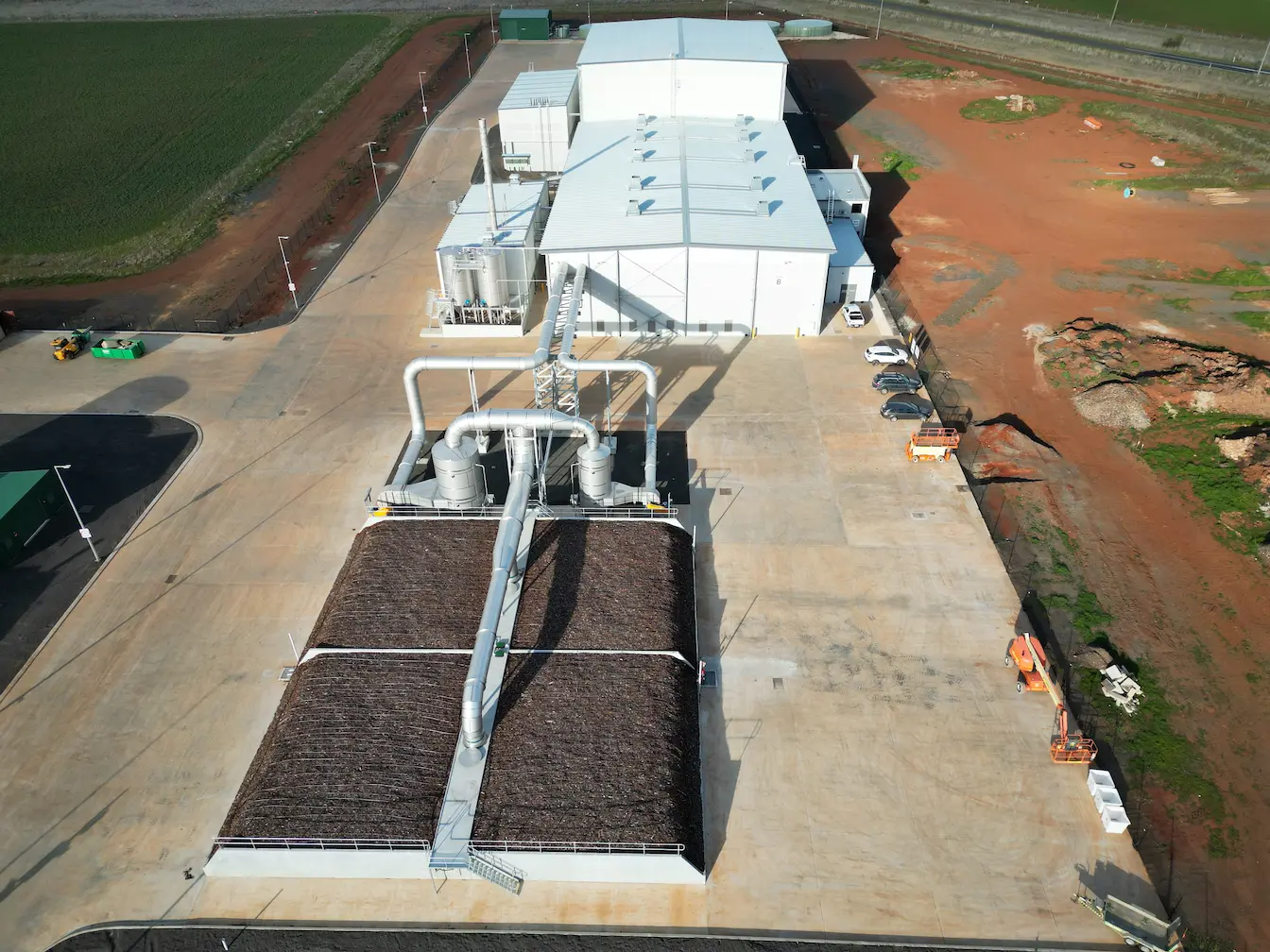

• TOU designed split system biofilter package efficiently naturalises the high intensity odours creating a virtually odour free working environment without impacting any neighbours
• Electrical equipment, device, and control supply and installation
• Mechanical Installation
• iPad operator control to compliment the control room computers
• Remote back up and support
