Greenham

Keith designed, manufactured and installed a Complete Continuous High Temperature Protein Recovery Facility capable of processing up to 7,000kg/hr of Bovine material. The project was completed and successfully commissioned within 12 months of ordering.

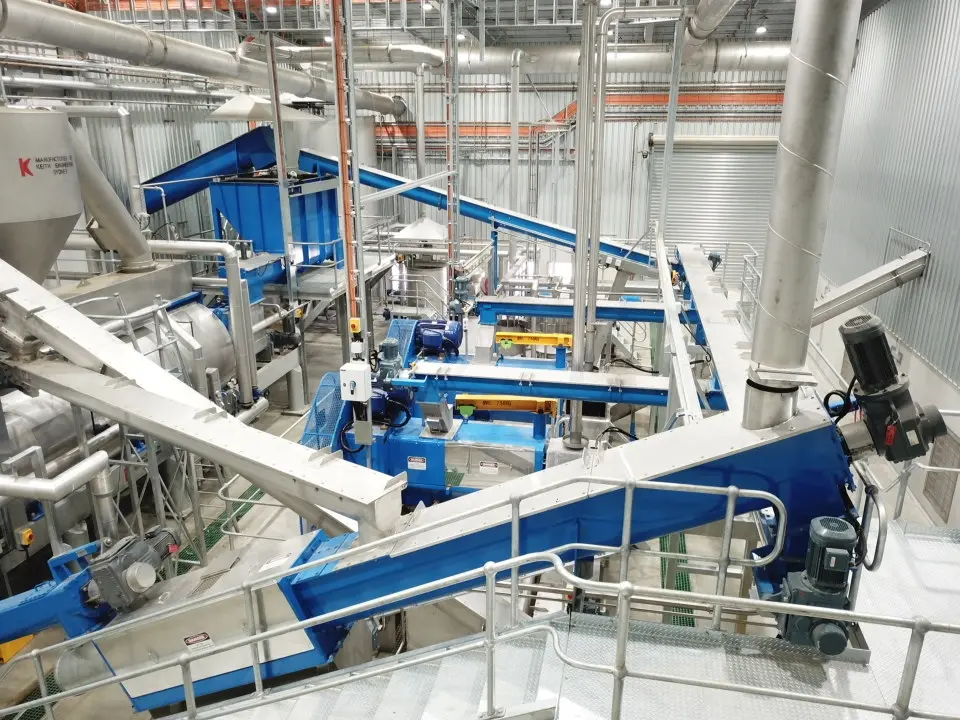

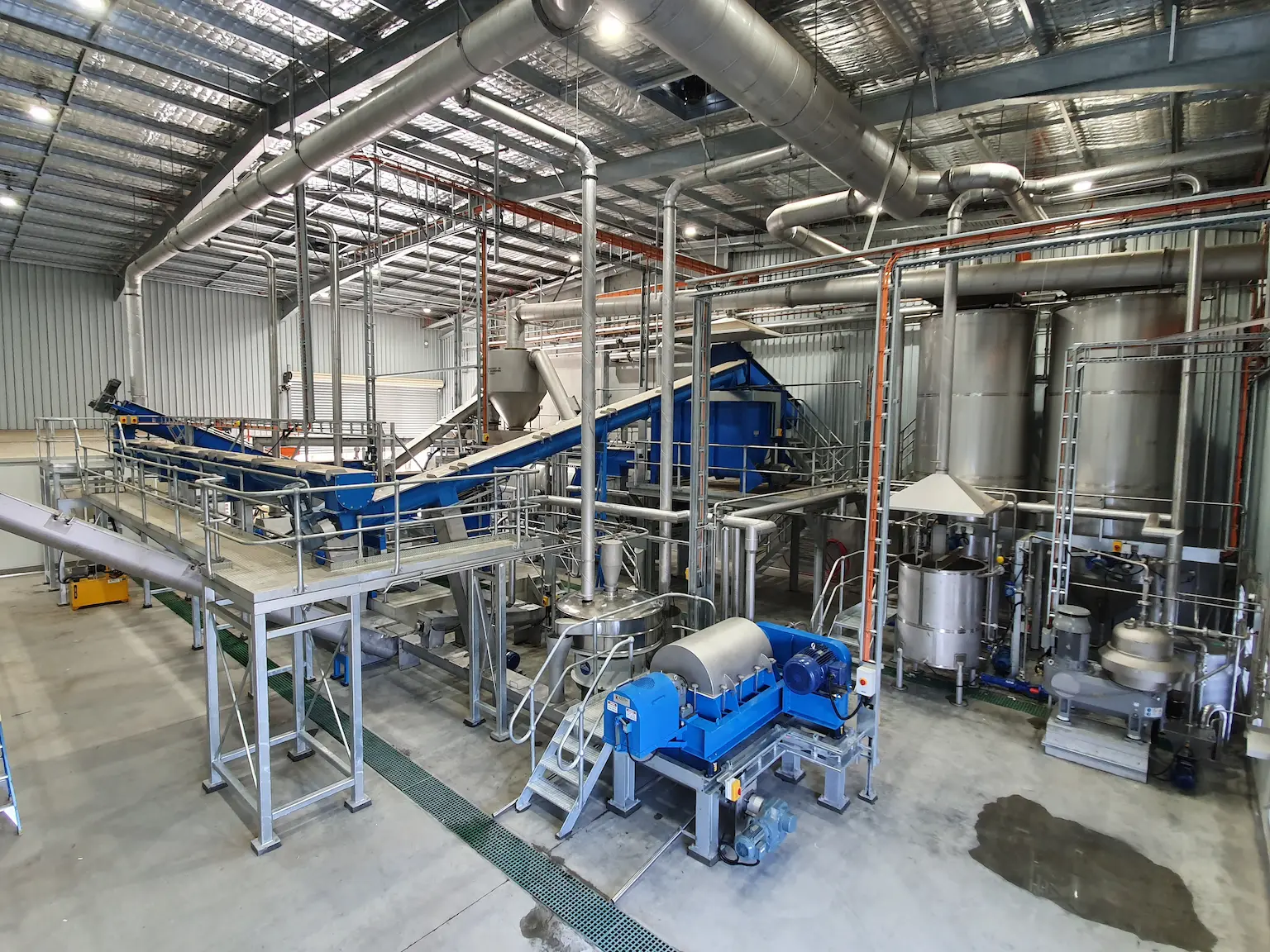

The plant is housed in a purpose built and designed building, with a high level of focus on maintenance access and operator movement. The plant incorporates the latest design upgrades, controls, and automation, minimising operator input and manual handling.

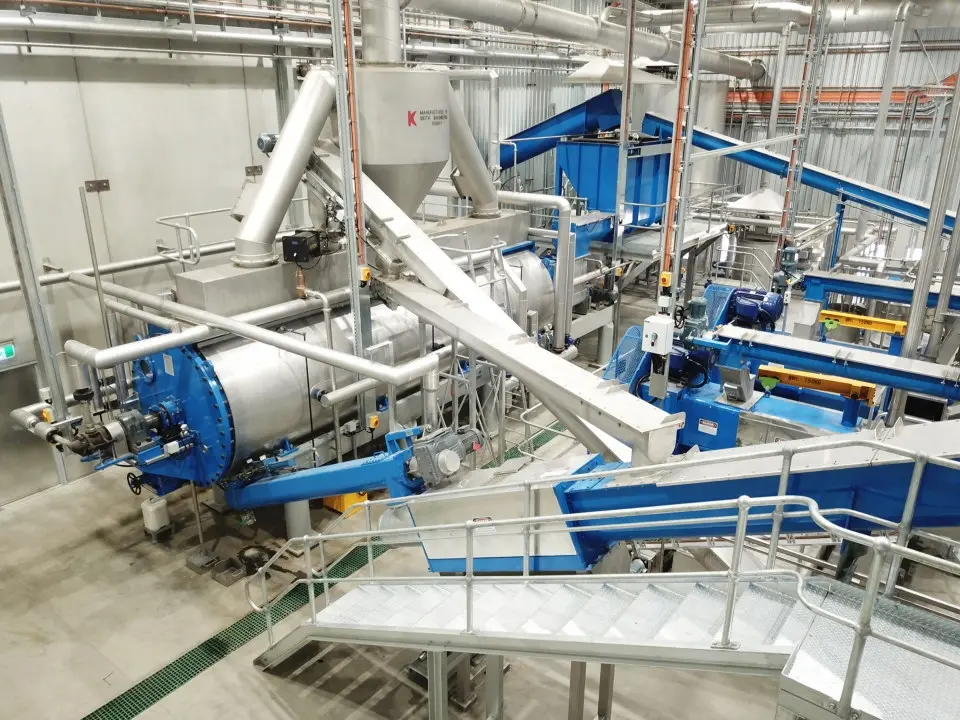

The plant utilises a factory fitted bottom discharge New Generation Keith 900 Series Continuous Cooker as well as a split system biofilter, which efficiently neutralisers the high intensity odours creating a comfortable, virtually odour free working environment.

• New generation bottom discharge Keith 900 Series Continuous Cooker
• A V-Ram Pump capable of pumping up to 10,000kg/hr transports material from the existing collection area approximately 150m to the Raw Material Bin located at the new Protein Recovery Facility.
• Keith Double Anvil Pre-Hog
• Automated Cooker steam control
• Bottom Discharge Control Screw with Incline Crax Drainer
• Two Bullnose model 1038 Screw Presses

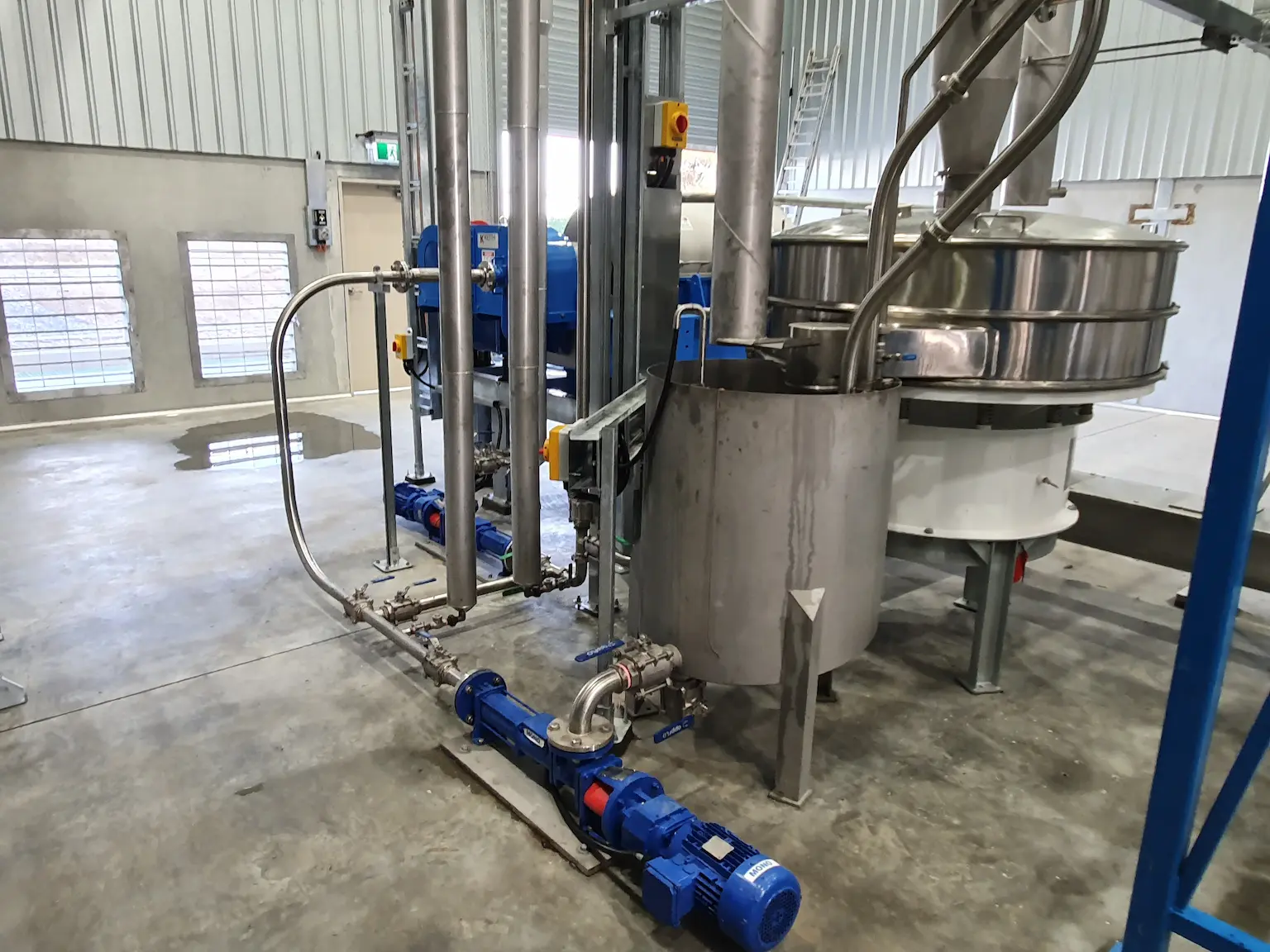

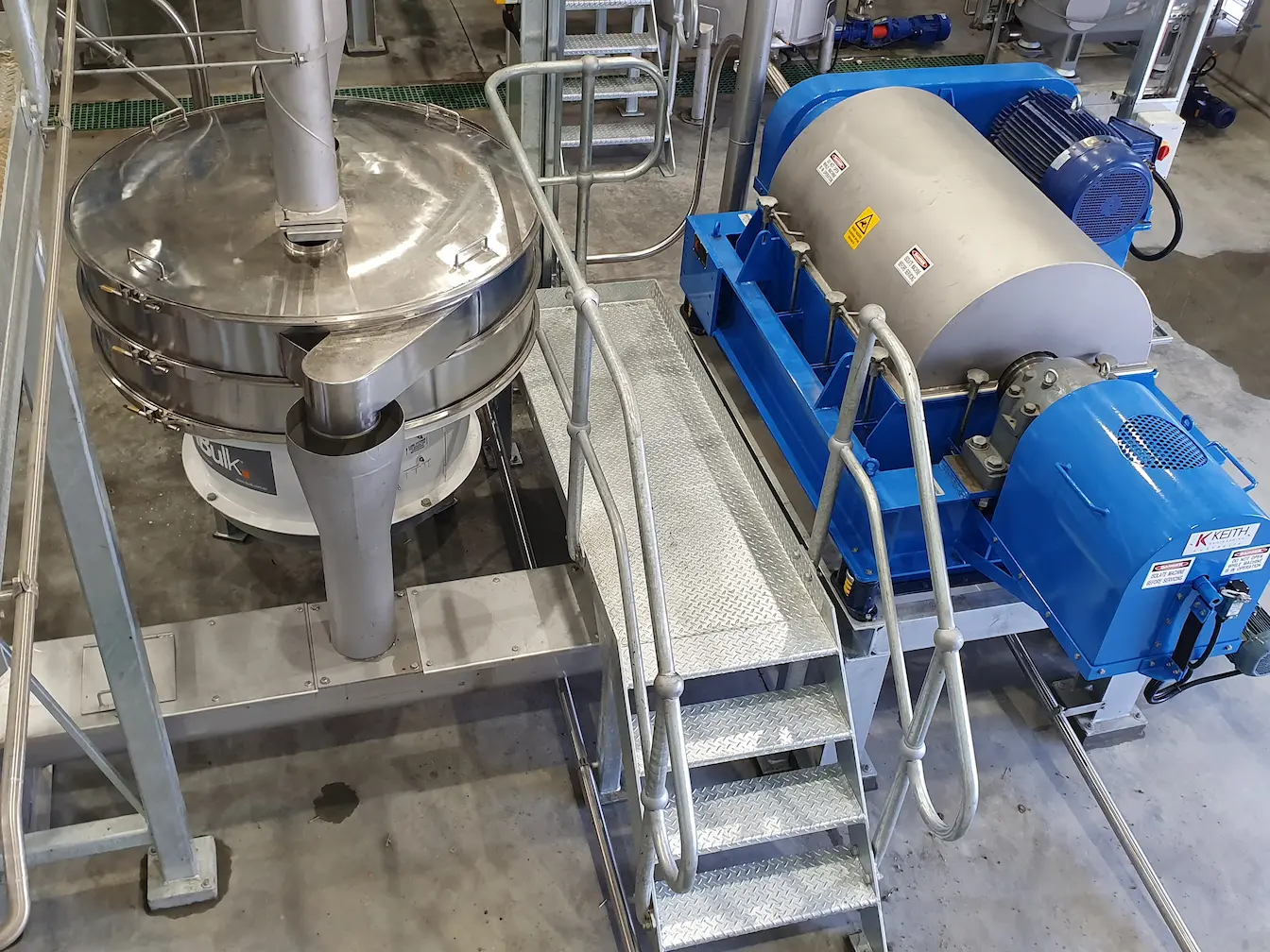

• Sweeco Tallow Vibrating Screen
• Keith 24 x 38 Tallow Centrifuge
• GEA Polisher

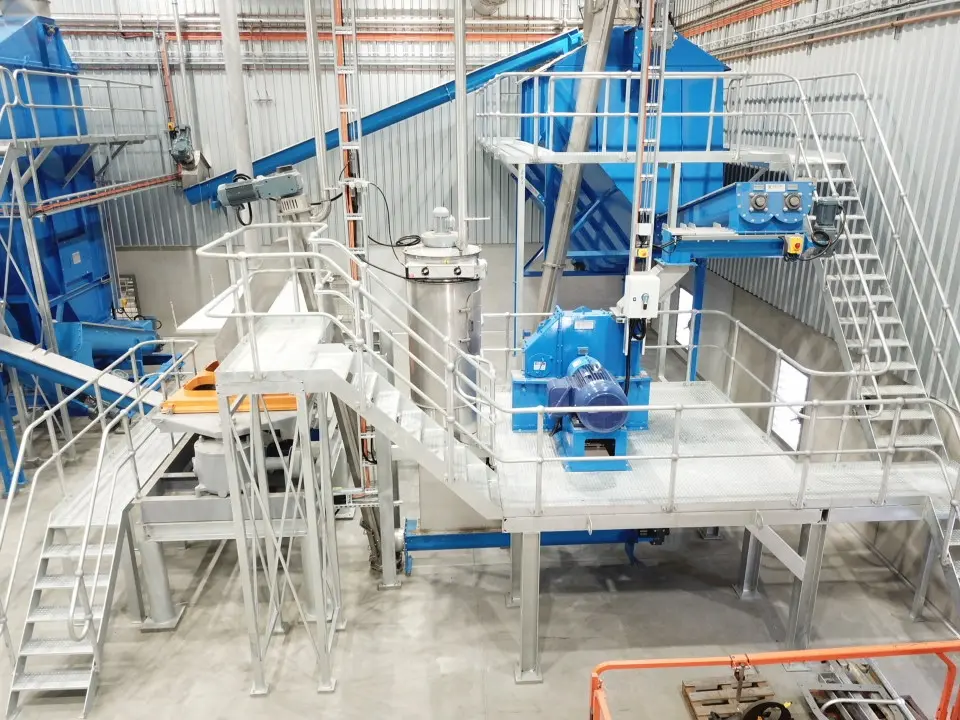

• Keith Standard Hammer Mill

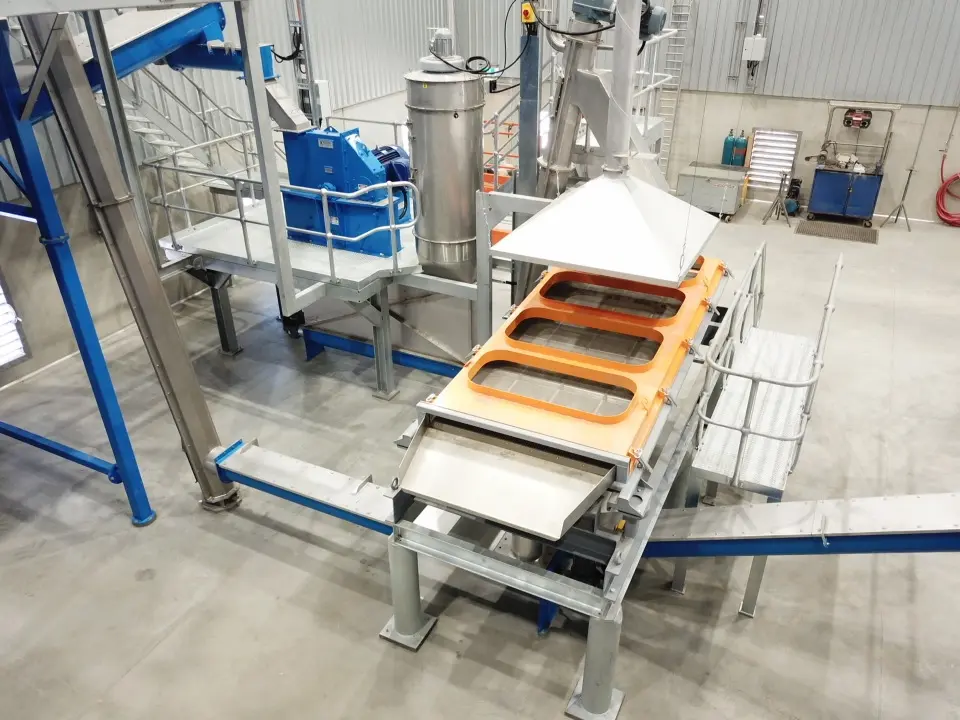

• Rotex Meat Meal Grading Screen
• Magna Ram Magnet

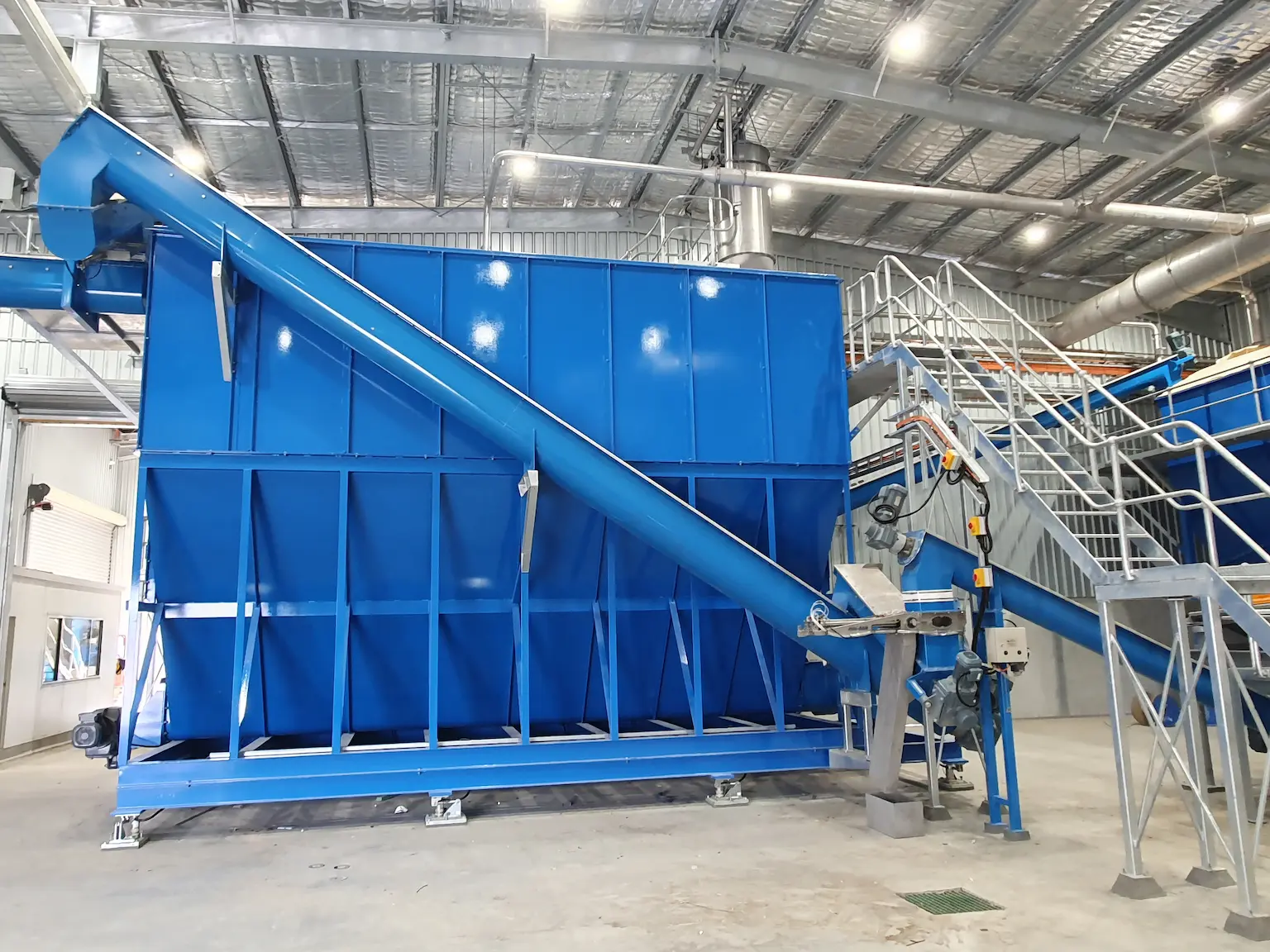

• 60 tonne capacity Meat Meal Blending Bin set up on load cells
• Twin 30t Tallow Bulk Loadout Tanks

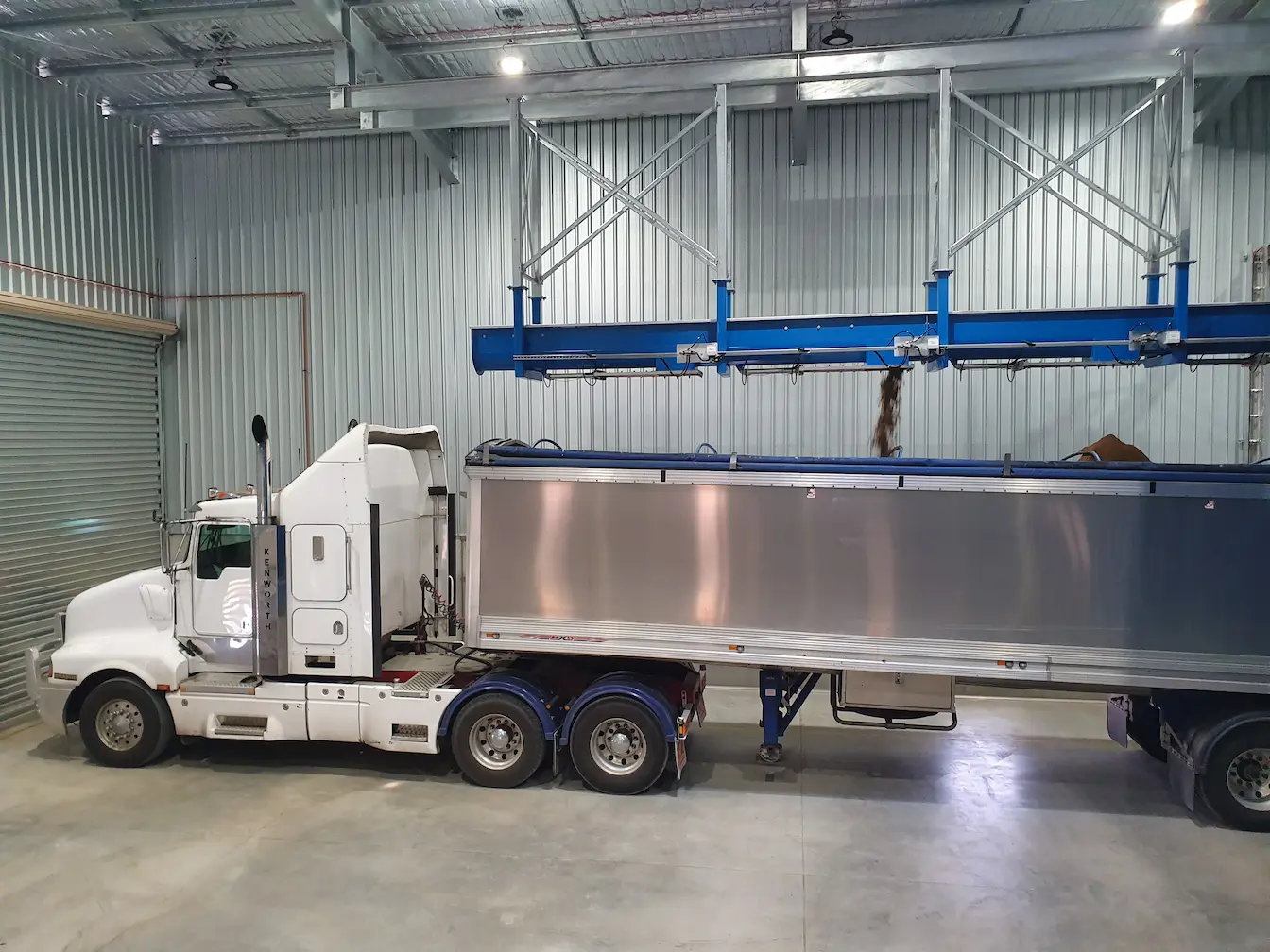

• Automated open top truck loading system which can also be operated remotely

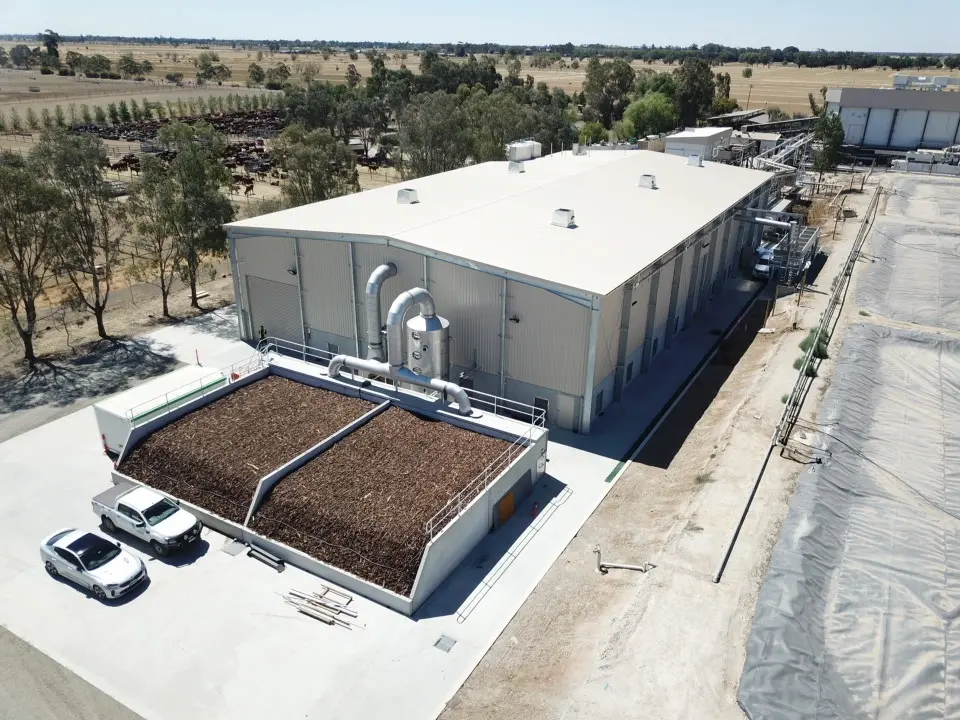

• TOU designed split system biofilter package
• Electrical equipment, device, and control supply and installation
• Mechanical installation of all equipment
• iPad operator control to compliment the control room computers
• Remote back up and support
